The amount of settlement at the measuring points

The amount of settlement at the measuring points

（Unit:m）
Measuring
Date		 Measuring Point Depth of
settlement
from KIX
opening year
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 av.
Reclamation
Start
'87.09		 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 0.00 -
'94.12 8.76 7.88 10.78 10.31 9.69 8.82 9.00 10.98 10.46 9.86 8.79 10.50 10.38 9.96 10.82 8.13 11.87 9.82 0.00
'95.11 9.11 8.25 11.17 10.71 10.06 9.22 9.34 11.38 10.88 10.22 9.15 10.95 10.87 10.47 11.20 8.33 12.32 10.21 0.39
'96.11 9.44 8.59 11.54 11.09 10.43 9.59 9.63 11.74 11.28 10.55 9.44 11.35 11.29 10.91 11.52 8.51 12.70 10.56 0.74
'97.11 9.74 8.87 11.88 11.43 10.79 9.89 9.88 12.08 11.63 10.86 9.69 11.71 11.63 11.26 11.80 8.65 13.10 10.87 1.05
'99.02 10.11 9.23 12.29 11.85 11.19 10.28 10.21 12.49 12.02 11.20 9.99 12.14 12.04 11.66 12.11 8.84 13.53 11.25 1.43
'99.12 10.33 9.44 12.51 12.08 11.43 10.49 10.37 12.73 12.26 11.40 10.15 12.39 12.26 11.89 12.30 8.93 13.78 11.45 1.63
'00.12 10.57 9.67 12.76 12.33 11.67 10.71 10.55 12.99 12.49 11.60 10.32 12.65 12.48 12.13 12.50 9.04 14.06 11.68 1.86
'01.12 10.78 9.87 13.00 12.57 11.89 10.89 10.69 13.20 12.70 11.79 10.46 12.89 12.68 12.34 12.68 9.13 14.28 11.87 2.05
'02.12 10.97 10.04 13.19 12.77 12.06 11.04 10.82 13.42 12.87 11.94 10.59 13.07 12.86 12.52 12.83 9.22 14.46 12.04 2.22
'03.12 11.13 10.19 13.36 12.91 12.21 11.17 10.90 13.54 13.02 12.08 10.71 13.25 13.02 12.69 12.98 9.29 14.64 12.18 2.36
'04.12 11.26 10.30 13.49 13.04 12.32 11.27 10.98 13.66 13.12 12.18 10.80 13.40 13.17 12.84 13.12 9.38 14.78 12.30 2.48
'05.12 11.38 10.41 13.60 13.14 12.42 11.35 11.05 13.73 13.21 12.28 10.88 13.50 13.28 12.97 13.22 9.43 14.87 12.40 2.58
'06.12 11.48 10.50 13.73 13.26 12.51 11.42 11.12 13.81 13.30 12.36 10.95 13.59 13.39 13.08 13.33 9.49 14.96 12.49 2.67
'07.12 11.58 10.59 13.83 13.34 12.59 11.49 11.16 13.87 13.36 12.44 11.01 13.67 13.47 13.19 13.41 9.53 15.04 12.56 2.74
'08.12 11.68 10.68 13.93 13.43 12.67 11.55 11.23 13.93 13.42 12.50 11.06 13.74 13.52 13.26 13.48 9.57 15.10 12.63 2.81
'09.12 11.77 10.76 14.02 13.52 12.74 11.62 11.28 13.99 13.49 12.57 11.12 13.81 13.59 13.35 13.56 9.61 15.17 12.71 2.89
'10.12 11.87 10.84 14.12 13.60 12.81 11.69 11.33 14.05 13.55 12.64 11.18 13.87 13.68 13.45 13.65 9.66 15.24 12.78 2.96
'11.12 11.95 10.90 14.21 13.68 12.88 11.75 11.38 14.11 13.62 12.71 11.24 13.94 13.77 13.54 13.72 9.69 15.31 12.85 3.03
'12.12 12.05 10.98 14.30 13.77 12.96 11.82 11.44 14.17 13.68 12.79 11.31 14.01 13.85 13.64 13.79 9.73 15.38 12.92 3.10
'13.12 12.14 11.04 14.39 13.84 13.03 11.88 11.48 14.23 13.76 12.86 11.37 14.08 13.94 13.72 13.87 9.77 15.44 12.99 3.17
'14.12 12.21 11.10 14.46 13.91 13.09 11.94 11.53 14.28 13.82 12.93 11.42 14.14 14.03 13.80 13.94 9.80 15.50 13.05 3.23
'15.12 12.30 11.17 14.55 13.98 13.16 12.00 11.58 14.33 13.87 13.00 11.48 14.20 14.09 13.88 14.00 9.84 15.57 13.12 3.30
'16.12 12.39 11.23 14.63 14.07 13.23 12.06 11.63 14.40 13.94 13.07 11.55 14.27 14.18 13.97 14.08 9.88 15.64 13.19 3.37
'17.12 12.47 11.29 14.70 14.13 13.29 12.11 11.67 14.45 14.00 13.13 11.60 14.33 14.25 14.04 14.14 9.91 15.70 13.25 3.43
'18.12 12.55 11.35 14.78 14.20 13.36 12.17 11.72 14.51 14.06 13.20 11.66 14.39 14.33 14.12 14.21 9.96 15.76 13.31 3.49
'19.12 12.62 11.40 14.85 14.27 13.42 12.23 11.78 14.57 14.13 13.27 11.72 14.45 14.40 14.19 14.27 9.99 15.83 13.38 3.56
'20.12 12.69 11.45 14.92 14.33 13.48 12.28 11.82 14.63 14.18 13.33 11.77 14.51 14.46 14.26 14.33 10.03 15.88 13.43 3.61
'21.12 12.77 11.50 14.99 14.39 13.54 12.34 11.88 14.69 14.25 13.40 11.84 14.57 14.53 14.33 14.39 10.07 15.95 13.50 3.68
'22.12 12.84 11.57 15.05 14.45 13.60 12.40 11.92 14.74 14.30 13.46 11.89 14.63 14.59 14.42 14.44 10.09 16.00 13.55 3.73
'23.12 12.90 11.62 15.12 14.51 13.65 12.46 11.97 14.80 14.36 13.52 11.95 14.68 14.65 14.49 14.49 10.13 16.06 13.61 3.79
<The amount of settlement at the measuring points (accumulated settlement since the beginning of the construction)>

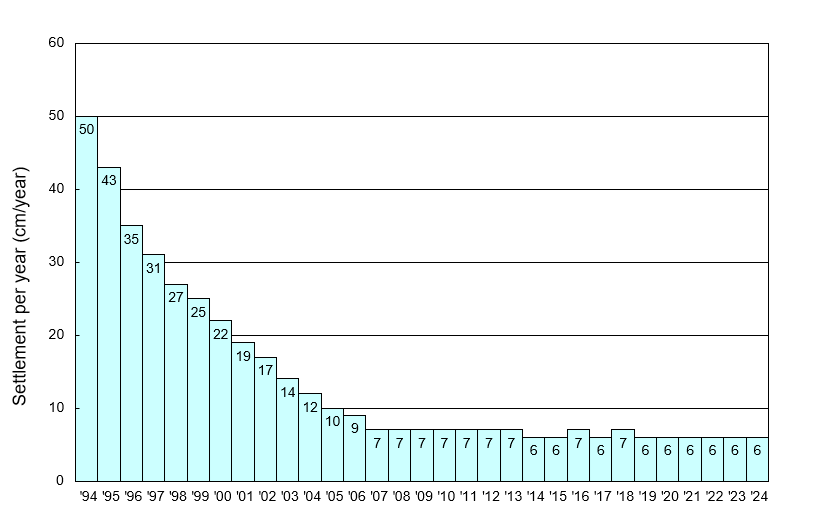

Settlement per year
<Settlement per year>
